One clock in the load bank file: First-Principles Data Center Engineering Protocol

Direct Answer Block: Why merging electrical power meters, liquid flow meters, and RTDs into a commissioning flash report requires a single UTC clock synchronized via PTP or NTP. In mission-critical data center commissioning and operations, engineers enforce this boundary using deterministic physical equations, calibrated field instrumentation, and auditable sign-off gates rather than relying on vendor brochure summaries, uncalibrated software plots, or verbal assurances. Every measurement and state transition must be recorded with synchronized UTC timestamps and explicit pass/fail thresholds before a signature is granted.

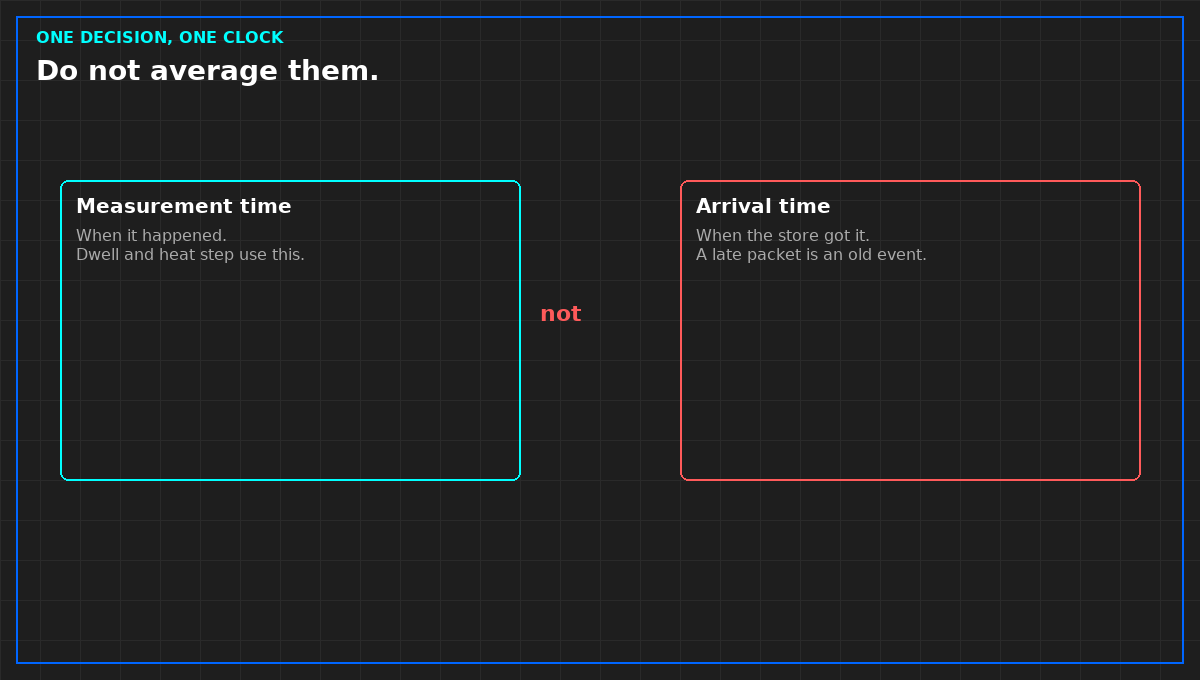

Two times travel with a sample. Measurement time is when the thing happened. Arrival time is when the store received it. A late packet with a fresh arrival stamp is an old event. Plot by arrival, and a delay becomes a change.

Pick one clock for the decision and write which. A dwell and a heat step are measurement times. A backlog in the collector is an arrival-time problem. Do not average the two to make a chart line up. The average is a third time nobody measured.

If the facility system and the load bank file disagree by minutes, write the offset or refuse the joint chart. A hidden offset invents a cause that is only a delay. That invented cause will be inherited by the report if you do not stop it in the file judgment.

The interval is part of the clock. A point expected every second that arrives every five is not the same series with a smoother average. Write the expected interval. A gap longer than that interval is a gap, even if someone filled it.

1. First-Principles Engineering Formulation and Governing Mathematics

In high-density data center environments, verbal summaries and qualitative status tiles routinely obscure incipient physical failures. Whether auditing a 120 kW liquid-cooled rack boundary, evaluating a 1-second telemetry time series, or verifying plant redundancy prior to handover, the governing physical relationship for this protocol is expressed as:

When any term on the left-hand or right-hand side of this relationship is left unmeasured, inferred from an uncalibrated nameplate, or averaged across an unverified time window, the resulting engineering record cannot support a valid operational signature. Field engineers must verify each physical variable independently using NIST/ISO 17025 traceable instruments before proceeding to the next gate in the sequence.

2. Deep-Dive Technical Protocol and Field Implementation

The following field protocol—adapted directly from Volume 02: Read and Use Load Bank Data: A Field Guide to the Flash Report—establishes the step-by-step verification mechanics required on the data hall floor:

A plotted point on a flash-report chart is not a raw measurement, and a raw measurement is not an optional disposable scratch file.

In mission-critical commissioning, an engineering chart that cannot produce its underlying raw time-series data is not an analysis; it is a graphic illustration. If you discard the raw data and keep only minute-averages, you lose the ability to detect contactor arcing, flow meter cavitation slugs, and communication timeouts. Conversely, if you present an auditor with an un-aggregated scatter of sixty thousand points per hour, the eye will drown in visual noise and miss long-term thermodynamic drift.

A professional flash report retains both: it acquires high-frequency raw samples, archives them in an immutable time-series store, and constructs each plotted point through strict, auditable statistical aggregation.

(See Figure 04 for the metrological comparison between live physical turbulent jitter and buffer-freeze flatline fraud).

Raw acquisition at 1 Hz, then the sixty-second mean

The standard acquisition rate for all primary channels in this field guide is 1 Hz (one sample per second per channel).

• Why 1 Hz Is Required: A sampling rate of 1 Hz captures critical sub-minute physical phenomena: the rapid inrush current of heater staging, the 14-millisecond contactor clearing time during a single-feed drop test, and the dynamic pressure spikes of rapid valve movement. Sampling once every 10 or 30 seconds acts as a severe low-pass filter that blinds the observer to dangerous transients.
• The Sixty-Second Mean: Each formal point plotted on a flash-report time-series chart represents the arithmetic mean of sixty consecutive raw 1-second samples:

where each point is timestamped with the exact start-time of that sixty-second interval (e.g., 14:22:00.000Z).

• The Missing Sample Rule: If an edge gateway or Modbus poller drops communication during that minute, resulting in only 52 valid samples instead of 60, the minute is marked PARTIAL in the data block. Under no circumstances may the reporting script copy the neighboring minute's average or fabricate linear interpolation to "keep the curve looking smooth." A smooth curve that covers a communication dropout is an audit falsehood.

The variance gate: Catching stale data fraud

Sixty raw samples that are identical copies of a single cached float value are not a 60-sample average. They are one value wearing sixty timestamps.

In a turbulent fluid stream carrying 176.5 LPM of fluid through pipe diameters of 1.5 inches (DN39), the Reynolds number easily exceeds Re ≈ 28,000. Fluid flow in this regime is intensely turbulent. Convective micro-eddies, boundary-layer vortex shedding, and pump impeller blade-pass frequencies constantly produce microscopic thermal and pressure fluctuations.

• A genuine physical immersion RTD in live fluid will always exhibit a non-zero sample variance:

Typically, a healthy 1-second temperature stream exhibits a standard deviation of σ ≈ 0.05 K to 0.20 K (σ² ≈ 0.0025 to 0.0400 K²).

• The Flatline Signature of Fraud: If an edge gateway communication thread locks up, or if an ADC driver hangs and continuously echoes the last known register from RAM, the recorded values become mathematically flat. Every sample over a five-minute stretch reads exactly 45.000000°C down to the least significant bit. The calculated sample variance collapses to:

In a live liquid cooling loop, a variance of exactly zero is physically impossible. It is the definitive smoking gun of stale data fraud.

The flash report's automated data ingestion engine must run a continuous variance check:

When this flag is asserted, the reporting engine must reject the minute block, sound an audible alert, and refuse to calculate a compliant mean. Stale repeats fail the step plateau automatically.

The four-summary requirement on every step

Whenever a step data block is compiled for the flash report, reporting a simple arithmetic mean is strictly prohibited. A mean alone can conceal a dangerous localized spike.

Every step data block must report four mandatory statistical quantities for each active channel across the steady-state dwell:

• Minimum Value (min): The lowest raw 1-second reading recorded during the dwell.
• Maximum Value (max): The highest raw 1-second reading recorded during the dwell.
• Arithmetic Mean (μ): The central baseline value across all valid samples.
• Sample Standard Deviation (σ): The measure of physical turbulence and control stability.

Why the Maximum is Essential

Consider a 120kW load step with a mean coolant temperature of 45.0°C. If a pump briefly cavitated or an air bubble passed through the heater vessel for 10 seconds, the localized fluid temperature may have spiked to 68.5°C before recovering.

• In a 15-minute average of 900 points, that 10-second spike of 68.5°C will raise the mean by a negligible 0.26 K—an offset that any auditor would dismiss as rounding error.
• But reporting the maximum instantly exposes the peak: max = 68.5°C. This immediately alerts the engineering team that EPDM hose temperature limits were breached and that cavitation occurred.

A report that omits the maximum is an attempt to bury operational extremes inside a comfortable average. Require all four numbers on every line.

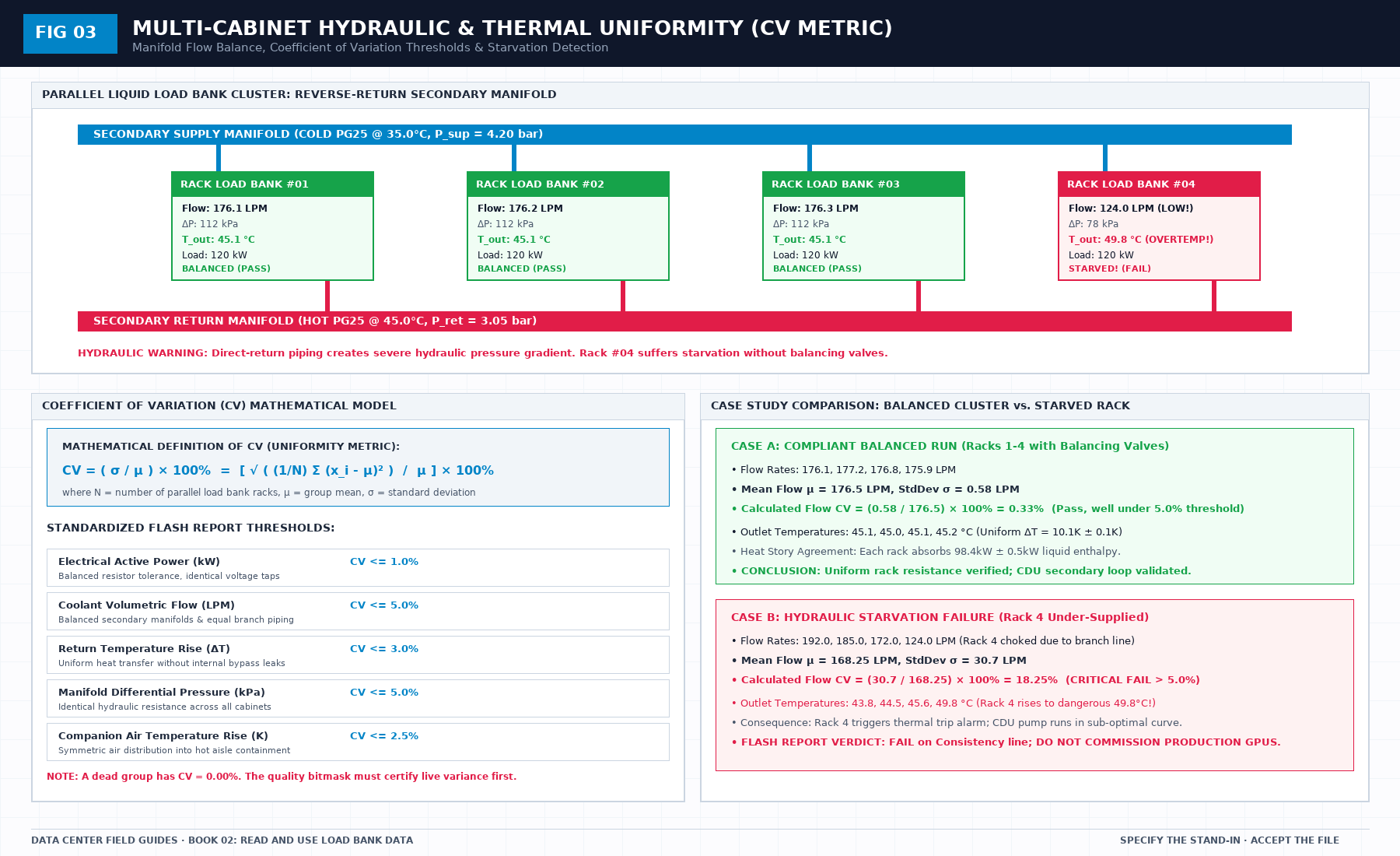

Mathematical rules for branch and total sums

When aggregating flow and power across multiple parallel cabinets, arithmetic rules must respect the physical piping and electrical topology:

• Total Volumetric Flow: Must be computed strictly from the sum of the individual branch vortex flow meters:

Do not sum a main header ultrasonic flow meter and the individual branch meters together and claim that the loop moved twice the fluid!

• Missing Meter Rule: If Cabinet 3's flow meter fails or drops communication, Q_total is incomplete. The flash report must report: "Total flow: INCOMPLETE (Cabinet 3 meter offline)." Under no circumstances may an automated script estimate Cabinet 3's flow by averaging Cabinets 1, 2, and 4! An estimated number in a sum is an engineered fabrication.
• Total Electrical Power: Must be computed from the discrete phase powers of each branch feeder:

Do not report an upstream substation transformer power reading and call it the load-bank load. Upstream transformers include cable losses, lighting, and auxiliary chiller pump power that do not touch the liquid load bank.

Annotating dynamic step transitions

For the Sudden Step Change and Overload scenes, the time-series chart must explicitly annotate the exact second when the command was issued:

• A vertical red dashed marker must indicate t_command.
• A second vertical blue marker must indicate t_settled, when fluid temperature and power achieved their new steady plateau.
• The chart label must state the observed rise time (Δt_rise) and the peak transient pressure pulse (ΔP_surge).

An un-annotated spike on a chart will be interpreted as a catastrophic fault by a skeptic and as a brilliant operational feature by an optimist. Only precise, labeled timestamps prevent subjective debate.

3. Field Verification Checklist and Instrumentation Hygiene

To execute this protocol without introducing measurement bias or scope ambiguity, the responsible engineer enforces four mandatory field rules:

• Instrument Traceability Before Observation: Verify that every thermometer (4-wire Pt100 RTD Class A), pressure transducer (≤ ± 0.1% span), flowmeter, balometer, or power analyzer carries a current calibration certificate and passes a pre-test zero/span check on the day of the walk.
• Synchronized Time-Series Capture: Align all digital loggers and gateway pollers to a single UTC reference clock (via IEEE 1588v2 PTP at ± 1 ms for electrical Sequence of Events, or NTP at ± 10 ms for thermal/hydraulic dwells). Never merge unsynchronized CSV files by row index.
• Explicit Isolation of Disturbances vs. Control Handles: Hold upstream supply temperatures, parallel cabinet loads, and containment door states constant during the observation dwell so that transient plant drift is never mistaken for steady-state equipment performance.
• Written Record Prior to Signature: Record every boundary tag, measured value, uncertainty tolerance, and open limitation in ink on the controlled project sheet before leaving the equipment line-up.

Frequently Asked Questions (FAQ)

Why does "One clock in the load bank file" matter during high-density data center commissioning and operations?

Why merging electrical power meters, liquid flow meters, and RTDs into a commissioning flash report requires a single UTC clock synchronized via PTP or NTP. When project teams bypass this rule to meet a commercial schedule milestone, unverified physical assumptions—such as hidden hydraulic pressure drops, unlogged polling gaps, unblanked bypass leakage, or uncalibrated sensor offsets—transfer directly into live 24/7 production as latent single points of failure.

How do you quantitatively verify compliance with "NTP PTP clock synchronization load bank data" on the physical floor?

Compliance is verified by executing the governing mathematical balance (| t_{PDU, UTC} - t_{flow, UTC} | ≤ 100 ms,      τ_lag = V_pipe / Q_v) using independent, calibrated field instruments across a stabilized steady-state dwell window (minimum 15 to 30 minutes for thermal and hydraulic systems), and confirming that the discrepancy between primary and secondary measurements remains strictly within the pre-declared acceptance band.

What should an engineer do if a contractor or vendor submits a report that violates this protocol?

The reviewing engineer must refuse to sign the broad acceptance sentence, mark the specific line item as Unproved / Defective on the official audit sheet, and either require a witnessed re-test under a corrected script or isolate the unproved scope under a time-bounded Conditional Acceptance with a 150% to 200% financial retainage escrow holdback.

From Read and Use Load Bank Data: A Field Guide to the Flash Report, Tristan, Data Center Field Guides.
