SOP, MOP, and EOP are three papers: First-Principles Data Center Engineering Protocol

Direct Answer Block: Structural and legal differences between Standard Operating Procedures (SOP), Methods of Procedure (MOP), and Emergency Operating Procedures (EOP) in critical facilities. In mission-critical data center commissioning and operations, engineers enforce this boundary using deterministic physical equations, calibrated field instrumentation, and auditable sign-off gates rather than relying on vendor brochure summaries, uncalibrated software plots, or verbal assurances. Every measurement and state transition must be recorded with synchronized UTC timestamps and explicit pass/fail thresholds before a signature is granted.

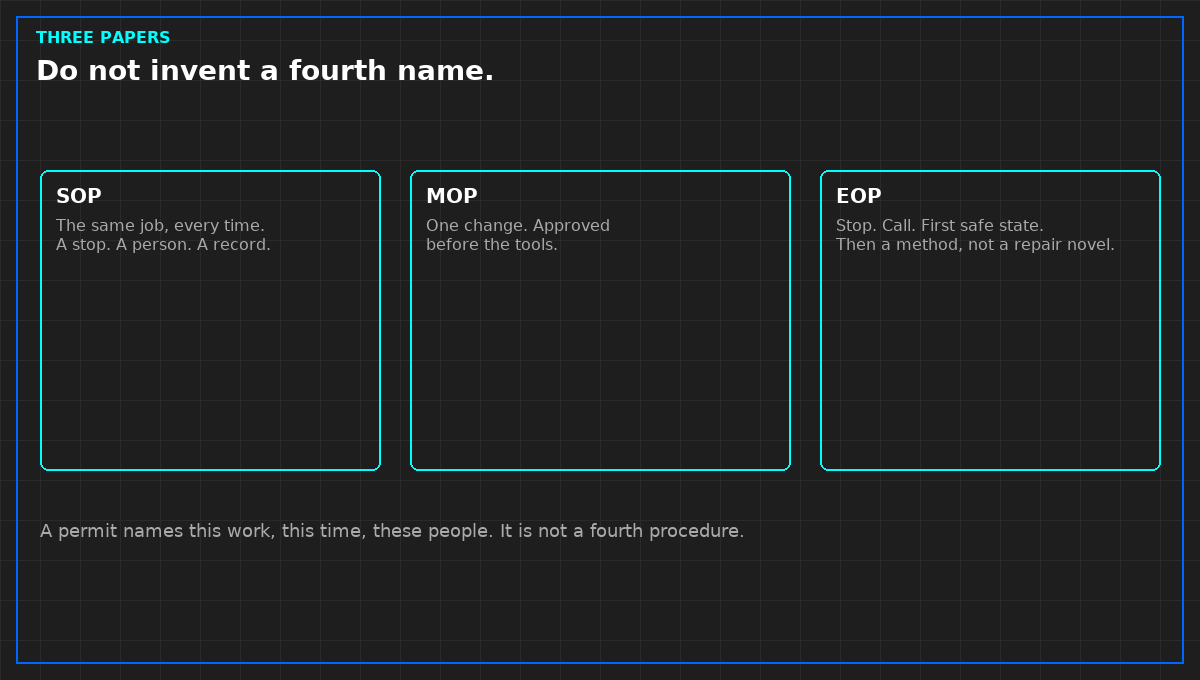

Three names are enough. A standing operating procedure is how a routine task is done every time. A method of procedure is the paper for one job, on one day, that changes the plant. An emergency operating procedure is what you do when you cannot wait for that job paper. A permit sits on top of all three. It is not a fourth procedure. It says this work, this place, this time, these people.

Teams get into trouble by using one word for all three. A binder labeled SOP that contains a valve replacement, a daily round, and a twenty-page repair is not a system. It is a pile. The night shift will open the wrong one, or will not open any of them.

The test is the clock. If the work happens the same way every Tuesday, it is standing. If it isolates something and has to come back, it is a method, approved before the tools come out. If the service or a person is already in danger, it is the emergency paper, and it stops at the first safe state. After that, the rest of the work becomes a method. It does not stay inside the emergency paper because someone is still awake.

Do not invent a certified fourth name to sound like a course. Courses that teach how to write these papers may be cited by title. Their handouts are not your steps. A customer's procedure stays in their file. Yours names the stop, the person, and the record your plant actually uses.

If the only copy is a habit, write it down or stop calling it a procedure. A paper no one can find at the panel is the same as a habit.

1. First-Principles Engineering Formulation and Governing Mathematics

In high-density data center environments, verbal summaries and qualitative status tiles routinely obscure incipient physical failures. Whether auditing a 120 kW liquid-cooled rack boundary, evaluating a 1-second telemetry time series, or verifying plant redundancy prior to handover, the governing physical relationship for this protocol is expressed as:

When any term on the left-hand or right-hand side of this relationship is left unmeasured, inferred from an uncalibrated nameplate, or averaged across an unverified time window, the resulting engineering record cannot support a valid operational signature. Field engineers must verify each physical variable independently using NIST/ISO 17025 traceable instruments before proceeding to the next gate in the sequence.

2. Deep-Dive Technical Protocol and Field Implementation

The following field protocol—adapted directly from Volume 05: Run the Data Center Day: What the Manager Must Sign Before the Shift Ends—establishes the step-by-step verification mechanics required on the data hall floor:

Work performed in a production data center without a validated, written method is not engineering; it is gambling with the customer's business.

Four distinct operational documents govern every physical action on site. Never conflate their functions.

Standard Operating Procedures (SOP)

An SOP governs recurring, baseline operations where the system configuration remains within normal operating limits:

• Executing daily physical shift rounds.
• Conducting chemical water sampling and glycol refractometer tests.
• Operating the manual bypass valve on a water softener skid.
• Performing routine filter differential pressure checks.

Every SOP must exist as a printed, laminated document physically located at the point of work (e.g., mounted inside the CDU enclosure or on the wall of the water treatment plant). An SOP that exists only as a PDF buried in a corporate intranet directory is useless to a technician holding a sample flask.

Method of Procedure (MOP)

A MOP governs any scheduled, non-routine activity that touches critical infrastructure, alters equipment redundancy, or introduces risk of electrical or thermal disruption:

• Racking in or racking out a 480V air circuit breaker.
• Isolating a primary plate heat exchanger for acid cleaning.
• Replacing a mechanical seal on a 75 kW secondary loop pump.
• Updating firmware on a central Building Management System controller.

Every MOP must contain six mandatory structural sections:

• Scope and Equipment Identification: Explicitly naming the assets by unique equipment tag, building, room, and coordinate.
• Pre-Requisite Conditions: Verifying that redundant systems (N+1 or 2N) are 100% operational, fully available, and free of active alarms before work commences.
• Required Personal Protective Equipment (PPE) & Specialized Tools: Arc-flash suits, calibrated torque wrenches, insulated tools, pressure gauges, and spill containment kits.
• Step-by-Step Execution Sequence: Numbered, sequential actions with checkboxes and signature blocks for both the Performer and Checker at every single step.
• Detailed Back-Out Plan: The precise, pre-calculated sequence of actions required to abort the work and return the plant to a 100% stable, redundant operational state at any point during the window.
• Sign-Off and Technical Acceptance: Formal verification that the equipment has been restored to service, tested under load, and that all temporary jumpers, LOTO padlocks, and tools have been removed.

A MOP drafted or edited on a clipboard while standing in front of an open electrical cabinet is an incident report waiting to happen. If a procedural step cannot be completed as written, the technician must stop work, back out to the last safe step, and seek formal engineering re-approval.

Emergency Operating Procedures (EOP)

An EOP governs the immediate, high-stress response during an active equipment failure or catastrophic event:

• Uncontrolled secondary liquid cooling loop leak (> 50 LPM).
• Complete loss of external utility medium-voltage grid power.
• Catastrophic failure of an automatic transfer switch (ATS).
• Chiller plant electrical bus fire requiring emergency power off (EPO).

An EOP is designed for raw muscle memory. It must never exceed two pages in length. An EOP that contains twenty pages of narrative text is an engineering textbook, not an emergency procedure.

An effective EOP names only three things:

• The Stop: The immediate manual actions to halt further damage (e.g., hit the emergency isolation valve button EIV-101, trip the battery disconnect breaker).
• The Call: The exact operational role or phone number to summon emergency response (e.g., Duty Manager radio channel 1, municipal fire dispatch).
• The First Safe State: The verified stable operating mode to hold while incident management takes over (e.g., transition remaining IT load to secondary bus B, engage emergency glycol makeup pump).

Once the first safe state is secured, the EOP ends. All subsequent investigative, restoration, or repair work converts immediately into a planned operation governed by a formal MOP.

Permit to Work (PTW)

A Permit to Work sits atop the procedural framework. It is the legal and operational authorization granted by the Duty Manager permitting specific individuals to execute an approved MOP within an exact physical space during a defined time window.

A valid PTW enforces four hard constraints:

• Location: Specific room, aisle, and cabinet. Working outside the permit boundary is a direct safety violation.
• Time Window: Explicit start and end timestamps. An expired permit is an immediate Stop Work command.
• Personnel: Named individuals with verified qualification records on file.
• Lockout/Tagout (LOTO): Verification that all hazardous electrical, hydraulic, pneumatic, and chemical energy sources are physically locked, tagged, and zero-energy verified (test-before-touch).

Critical Spares Verification

No maintenance procedure may commence until all critical replacement parts are physically present at the job site.

A "critical spare" is not whatever parts happen to be sitting in the warehouse. A critical spare is the exact component whose failure or unavailability would prevent the execution of the MOP's back-out plan. For a secondary CDU pump replacement, the critical spares include:

• Replacement mechanical seal assembly with matching EPDM elastomers.
• Set of factory-spec mating gaskets for suction and discharge flanged connections.
• 50 liters of pre-mixed 25% propylene glycol solution.
• Calibrated torque wrench with current calibration certificate.

If the technician opens the CDU enclosure and then discovers that the replacement flange gasket is missing from the parts cage, the job does not start. Hoping that the old gasket can be scraped off and reused without leaking is how secondary cooling loops spray glycol across 400V busways.

Decisions to Record

• All active SOPs verified present as physical, readable documents at the equipment.
• All MOPs approved for today's shift, with service impact classifications recorded.
• LOTO registry numbers and physical padlock tag IDs applied to equipment.
• Exact expiration timestamps for all active Permits to Work.
• Confirmation that all critical spares were visually inspected and verified on site before permit issuance.

Lockout/Tagout (LOTO) Zero-Energy Verification and Two-Person Switching Rules

Even the most thoroughly peer-reviewed Method of Procedure (MOP) fails if the technician on the floor applies a lock to Cabinet UPS-1B while standing in front of Cabinet UPS-1A. Human visual confirmation bias under fluorescent plant lighting is eliminated only by executing the Select-Before-Operate (SBO) Two-Person Point-and-Call Protocol combined with a Live-Dead-Live zero-energy verification test.

The Live-Dead-Live Zero-Energy Proof Sequence

Before any enclosure door is opened for invasive maintenance or any busbar/pipe joint is unbolted under a MOP:

• Verify Boundary Tag ID: The Switching Operator touches the engraved phenolic nameplate on the breaker or valve, reads the full alphanumeric identifier aloud (MV-SWG-A-52-04), and waits for the Independent Verifier to confirm the exact character string against Step k of the signed MOP.
• Apply Personal LOTO Hardware: Each technician working on the boundary applies their own individually keyed personal padlock and signed danger tag to the multi-lock hasp. A supervisor may never apply or remove a lock on behalf of another technician.
• Execute Live-Dead-Live Voltage Proof: For electrical isolation, using a CAT IV 1000V rated digital multimeter or non-contact high-voltage phasing stick:
• Live: Test the meter on a known energized voltage source to prove the meter and leads are functional.
• Dead: Measure Phase-to-Phase (L₁-L₂, L₂-L₃, L₃-L₁) and Phase-to-Ground (L₁-PE, L₂-PE, L₃-PE) on the isolated load terminals, confirming 0.0 V.
• Live: Re-test the meter immediately on the known energized source to prove the meter battery or fuse did not fail during the dead measurement.

Emergency Operating Procedure (EOP) Memory Items vs. Reference Checklists

Every site EOP is structured into two distinct sections: Immediate Action Memory Items (maximum 3 to 5 physical steps boxed at the top of Page 1 that a qualified technician can execute within 30 seconds without holding a clipboard, such as hitting an EPO shunt trip, closing a main fuel leak isolation valve, or verifying automatic tie-breaker closure) and Subsequent Reference Steps (executed with the two-person printed checklist in hand once the immediate life-safety or equipment destruction hazard is contained).

3. Field Verification Checklist and Instrumentation Hygiene

To execute this protocol without introducing measurement bias or scope ambiguity, the responsible engineer enforces four mandatory field rules:

• Instrument Traceability Before Observation: Verify that every thermometer (4-wire Pt100 RTD Class A), pressure transducer (≤ ± 0.1% span), flowmeter, balometer, or power analyzer carries a current calibration certificate and passes a pre-test zero/span check on the day of the walk.
• Synchronized Time-Series Capture: Align all digital loggers and gateway pollers to a single UTC reference clock (via IEEE 1588v2 PTP at ± 1 ms for electrical Sequence of Events, or NTP at ± 10 ms for thermal/hydraulic dwells). Never merge unsynchronized CSV files by row index.
• Explicit Isolation of Disturbances vs. Control Handles: Hold upstream supply temperatures, parallel cabinet loads, and containment door states constant during the observation dwell so that transient plant drift is never mistaken for steady-state equipment performance.
• Written Record Prior to Signature: Record every boundary tag, measured value, uncertainty tolerance, and open limitation in ink on the controlled project sheet before leaving the equipment line-up.

Frequently Asked Questions (FAQ)

Why does "SOP, MOP, and EOP are three papers" matter during high-density data center commissioning and operations?

Structural and legal differences between Standard Operating Procedures (SOP), Methods of Procedure (MOP), and Emergency Operating Procedures (EOP) in critical facilities. When project teams bypass this rule to meet a commercial schedule milestone, unverified physical assumptions—such as hidden hydraulic pressure drops, unlogged polling gaps, unblanked bypass leakage, or uncalibrated sensor offsets—transfer directly into live 24/7 production as latent single points of failure.

How do you quantitatively verify compliance with "SOP vs MOP vs EOP data center operations" on the physical floor?

Compliance is verified by executing the governing mathematical balance (State Transition Authority:    SOP (Δ S = 0) \perp MOP (Δ S_planned) \perp EOP (Δ S_fault→safe)) using independent, calibrated field instruments across a stabilized steady-state dwell window (minimum 15 to 30 minutes for thermal and hydraulic systems), and confirming that the discrepancy between primary and secondary measurements remains strictly within the pre-declared acceptance band.

What should an engineer do if a contractor or vendor submits a report that violates this protocol?

The reviewing engineer must refuse to sign the broad acceptance sentence, mark the specific line item as Unproved / Defective on the official audit sheet, and either require a witnessed re-test under a corrected script or isolate the unproved scope under a time-bounded Conditional Acceptance with a 150% to 200% financial retainage escrow holdback.

From Run the Data Center Day: What the Manager Must Sign Before the Shift Ends, Tristan, Data Center Field Guides.
